SMD Type, Aluminum Electrolytic Capacitors

Series / Datasheet Features / Service Life Temperature Range (°C) Rated Voltage Range (V.DC) Capacitance Range (µF)
UCS Standard, 2000 hours -40 ~ +85 4 ~ 100 0.1 ~ 1500
UCK Standard, 2000 hours, Wide Temperature Range -25/-40/-55 ~ +105 4 ~ 450 0.1 ~ 8200
ULZ Low Impedance, 1000~2000 hourst -55 ~ +105 6.3 ~ 100 1 ~ 4700
UCF Low Impedance, 2000 hours -55 ~ +105 6.3 ~ 50 4.7 ~ 1500
UKZ Extra Lower Impedance, 1000~3000 hourst -55 ~ +105 6.3 ~ 100 4.7 ~ 4700
UFZ Extra Low Impedance, 2000-5000 hours -55 ~ +105 6.3 ~ 100 3.3 ~ 8200
UFS Low Impedance, Down-sized, 2000-5000 hours -55 ~ +105 6.3 ~ 50 4.7 ~ 1500
UHU High voltage, Long Life, 5000 hours -40 ~ +105 160 ~ 450 3.3 ~ 47
UKH High Reliability, 1000-5000 hours -40 ~ +125 10 ~ 450 3.3 ~ 4700

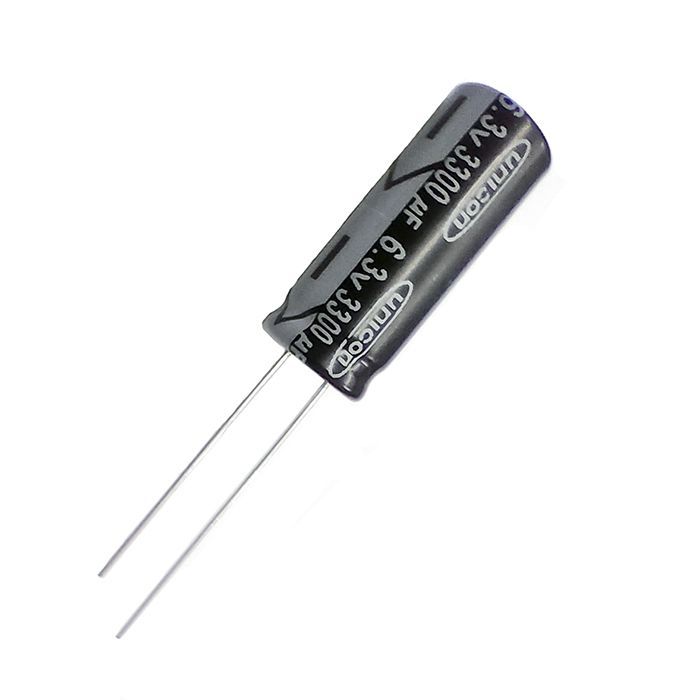

Radial Lead, Aluminum Electrolytic Capacitors

Series / Datasheet Features/Service Life Temperature Range (°C) Rated Voltage Range (V.DC) Capacitance Range (µF)
MSM Standard, 2000 hours -40 ~ +85 4 ~ 50 0.1 ~ 470
MGM Standard, Wide Temperature Range -55 ~ +105 6.3 ~ 50 0.1 ~ 100
MLM Low Leakage Current, 1000 hours -40 ~ +85 6.3 ~ 50 0.1 ~ 100
MBM Non-polar, Standard, 2000 hours -40 ~ +85 6.3 ~ 50 0.1 ~ 47
MZM Low Impedance, 1000 hours -55 ~ +105 6.3 ~ 35 1 ~ 100
PSM Standard, 2000 hours -40 ~ +85 4 ~ 50 0.1 ~ 470
PGM Standard, Wide Temperature Range -55 ~ +105 6.3 ~ 50 0.1 ~ 220
PLM Low Leakage Current, 1000 hours -40 ~ +85 6.3 ~ 50 0.1 ~ 220
PBM Non-polar, Standard, 2000 hours -40 ~ +85 6.3 ~ 50 0.1 ~ 47
PZM Low Impedance, 1000 hours -55 ~ +105 6.3 ~ 35 6.8 ~ 220
PXM Low Impedance, Long Life, 5000 hours -55 ~ +105 6.3 ~ 50 0.1 ~ 220
UDK Standard, 2000 hours, Wide Temperature Range -25/-40/-55~+105 4 ~ 450 0.1 ~ 6800
UDF Low Impedance, 2000-5000 hours -55 ~ +105 6.3 ~ 100 3.3 ~ 4700

<- Swipe for more info ->

Radial Lead, Aluminum Electrolytic Capacitors

Series Features / Service Life Temperature Range (°C) Rated Voltage Range (V.DC) Capacitance Range (µF)
FUM Standard, 2000 hours -25/40 ~ +85 6.3 ~ 450 0.22 ~ 22000
GUM Standard, Wide Temperature Range, 2000 hours -40/55~+105 6.3 ~ 450 0.22 ~ 22000
GXM Standard, Miniaturized, Wide Temperature Range, 2000 hours -40/55~+105 6.3 ~ 450 1 ~ 22000
GEM Standard, Miniaturized, Wide Temperature Range, 2000 hours -25/40~+105 6.3 ~ 450 1 ~ 22000
FFM Low profile, Standard, 2000 hours -40 ~ +85 6.3 ~ 400 0.1 ~ 10000
FXM Low profile, Standard, Wide Temperature Range, 1000 hours -40/55~+105 6.3 ~ 400 0.1 ~ 10000
BPM Non-polar, Standard, 2000 hours -40 ~ +85 6.3 ~ 100 0.47 ~ 6800
BGM Non-polar, Standard, Wide Temperature Range, 1000 hours -40 ~ +105 6.3 ~ 100 0.47 ~ 1000
LLM Low leakage current, 2000 hours -40 ~ +85 6.3 ~ 50 0.1 ~ 1000
HSM High temperature, Wide Temperature Range, 1000/2000 hours -40 ~ +125 10 ~ 63 1 ~ 4700
KLM Low Impedance, Standard, 2000-5000 hours -55 ~ +105 6.3 ~ 450 0.47 ~ 15000
KUM Low Impedance, Long Life, 3000-8000 hours -55 ~ +105 6.3 ~ 450 0.47 ~ 15000
KGM Low Impedance, Long Life, 4000-10000 hours -40 ~ +105 6.3 ~ 100 6.8 ~ 10000
KYM Low Impedance, Down-sized -40 ~ +105 6.3 ~ 100 1 ~ 15000
KXM Low Impedance, Standard, 2000-5000 hours -40 ~ +105 6.3 ~ 100 6.8 ~ 6800
KHM High ripple current, Long Life, 5000 hours -25/40~+105 160 ~ 450 3.3 ~ 330
KCM High ripple current, Long Life, 10000 hours -25/40~+105 160 ~ 450 10 ~ 220

<- Swipe for more info ->

Axial Lead, Aluminum Electrolytic Capacitors

Series / Datasheet Features/Service Life Temperature Range (°C) Rated Voltage Range (V.DC) Capacitance Range (µF)
FUT Standard, 2000 hours -25/40 ~ +85 6.3 ~ 450 0.47 ~ 22000
GST Standard, Wide Temperature Range, 1000 hours -25/40 ~ +105 6.3 ~ 450 0.47 ~ 22000
GUT Standard, Wide Temperature Range, 1000-2000 hours -55 ~ +105 6.3 ~ 100 0.47 ~ 15000
LLT Low leakage current, 2000 hours -40 ~ +85 10 ~ 50 0.47 ~ 1000
NPT Non-polar, Standard, 2000 hours -40 ~ +85 6.3 ~ 100 0.47 ~ 2200
HST High temperature, Wide Temperature Range, 1000-2000 hours -40 ~ +125 10 ~ 63 1 ~ 4700
BPT Bi-polar, for speaker use, 1000 hours -40 ~ +85 50 0.47 ~ 220
BPA Bi-polar, Bilateral sealing for speaker, 1000 hours -40 ~ +85 50 ~ 100 1 ~ 1000
BAM Bi-polar, for speaker use, 2000 hours -40 ~ +85 50 0.47 ~ 100
BCM Bi-polar, for speaker use, copper wire, 2000 hours -40 ~ +85 50 0.47 ~ 100

<- Swipe for more info ->

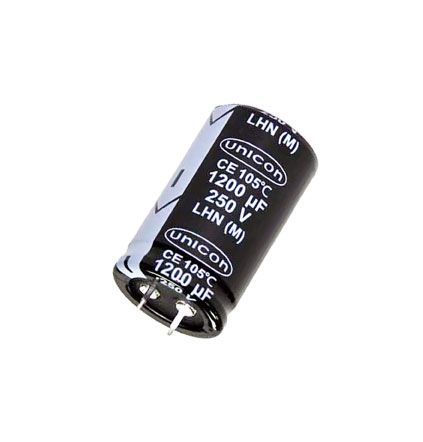

Snap-in Type, Aluminum Electrolytic Capacitors

Series / Datasheet Features/Service Life Temperature Range (°C) Rated Voltage Range (V.DC) Capacitance Range (µF)
LSN Standard, 2000 hours -25/40 ~ +85 16 ~ 450 56 ~ 56000
LUN Longer Life, 3000 hours -25 ~ +85 160 ~ 450 82 ~ 3300
LGN Standard, Wide Temperature Range, 2000 hours -25/40 ~ +105 16 ~ 450 56 ~ 47000
LDN Down sized than LGN, Wide Temperature Range, 2000 hours -25 ~ +105 160 ~ 450 100 ~ 3300
LVN Longer life than LGN, Wide Temperature Range, 3000 hours -25 ~ +105 160 ~ 450 100 ~ 3300
LHN Down sized than LVN, Wide Temperature Range, 3000 hours -25 ~ +105 160 ~ 500 82 ~ 3300
LLN High reliability, 5000 hours -25/40 ~ +105 160 ~ 450 100 ~ 39000
LYN/LXN For amplifier use / Dual capacitance, 2000 hours -40 ~ +85 350 ~ 500 10 ~ 470

<- Swipe for more info ->

Screw Terminal Type, Aluminum Electrolytic Capacitors

Series / Datasheet Features/Service Life Temperature Range (°C) Rated Voltage Range (V.DC) Capacitance Range (µF)
LRS Standard, 2000 hours -25/40 ~ +85 6.3 ~ 450 270 ~ 680000
LMS Long life, 5000 hours -40 ~ +85 350 ~ 450 1000 ~ 18000
LFS High reliability, 10000 hours -40 ~ +85 350 ~ 450 1000 ~ 15000
LHS Standard, Wide Temperature Range, 2000 hours -25/40 ~ +105 10 ~ 450 1000 ~ 330000
LXS Long life, Wide Temperature Range, 5000 hours -40 ~ +105 200 ~ 450 1000 ~ 330000
LPS High reliability, Wide Temperature Range, 10000 hours -40 ~ +105 350 ~ 450 1000 ~ 15000

<- Swipe for more info ->
